DESCRIPTION

* Small-format nearfield monitor with high SPL capability and deep bass extension to 44Hz
* DSP engine for improved performance and automatic room alignment
* Analog and S/PDIF connectivity (optional AES67)

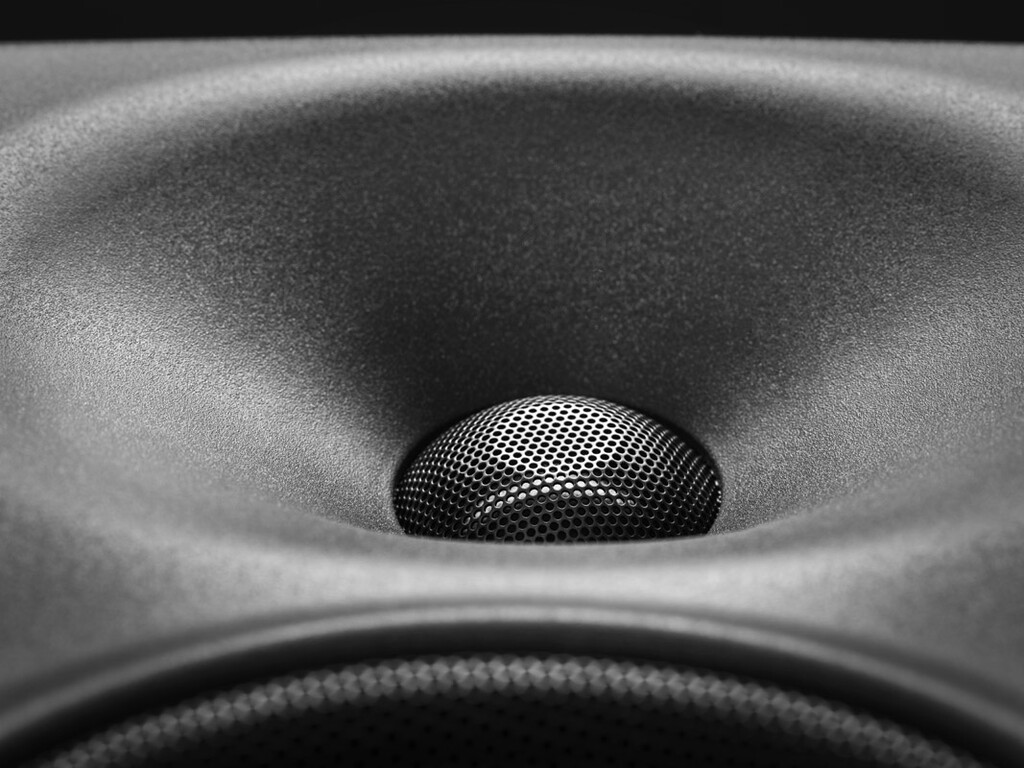

* High-precision drivers, Mathematically Modeled Dispersion (MMD) waveguide
* Razor-sharp imaging due to extremely low tolerances (±0.5dB)
* May be combined with other KH series speakers in immersive or surround setups
* Linear frequency response: 44Hz–21kHz (±3dB)
* Linear phase response: 120Hz–16kHz (±45°) with latency <2.6 ms
* Free-field frequency response: 44Hz–21kHz (±3dB)
* Self-generated noise @ 10cm: <20dB(A) SPL (with input gain set to 100dB SPL for 0dBu)
* Max. SPL (half space, 3% THD at 1m): 116.8dB SPL (averaged between 100Hz and 6kHz)
* Acoustical Principle: bass reflex, front-baffle ports

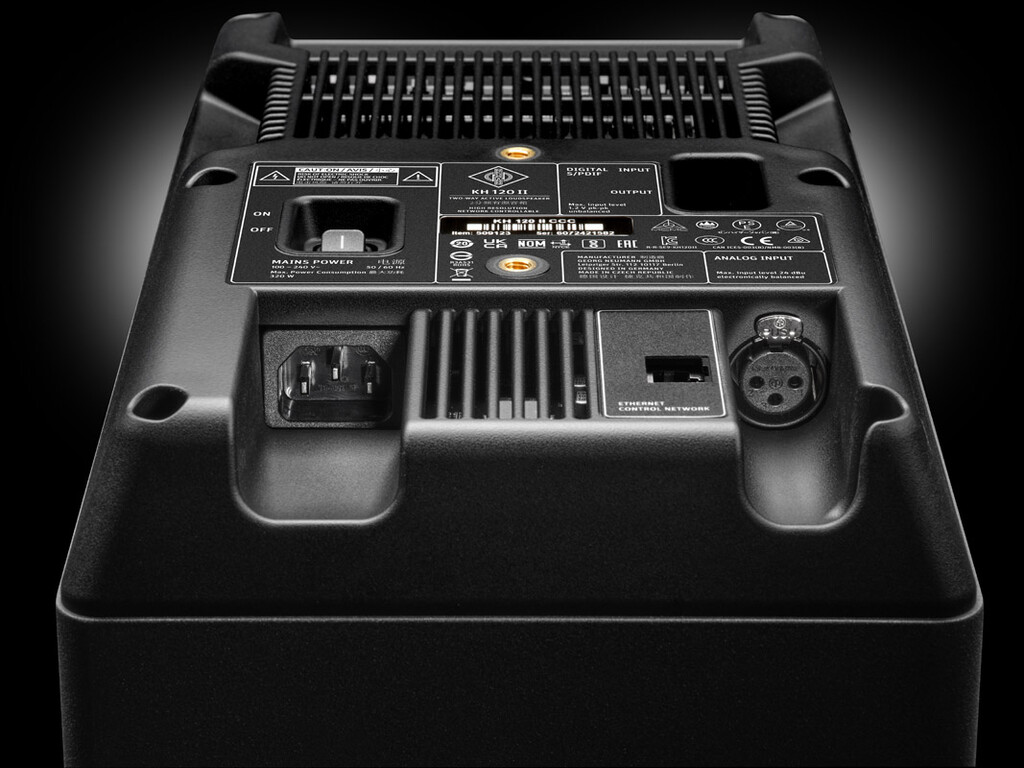

* Analog input(s): XLR (analog, electronically balanced)
* Analog input impedance: 24k ohms
* Digital input(s): S/PDIF; RCA (75 Ohm)

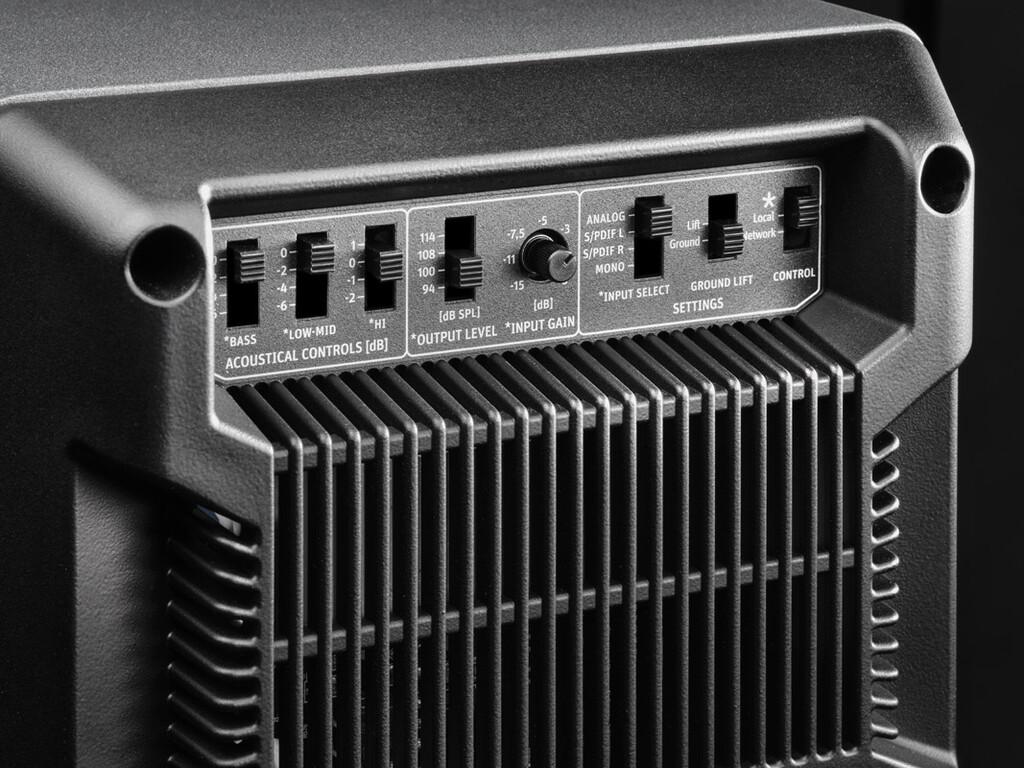

* Input gain control (sensitivity): 0dB–15dB
* Output level control: 94, 100, 108, and 114dB SPL (with 0dBu input level)
* EQ, Bass: 0, -2, -4, -6dB
* EQ, Low-Mid: 0, -2, -4, -6dB
* EQ, Treble: +1, 0, -1, -2dB
* Control: Local; Network
* Crossover frequency: 1.7kHz
FIR phase correction: Linear phase (120Hz–16kHz; +/- 45°)
* Output power, woofer amplifier: 145W (THD+N with limiter deactivated: 10%)
* Output power, tweeter amplifier: 100W (THD+N with limiter deactivated: 10%)
* Woofer: 5.25-inch, with protective metal grille
* Tweeter: 1-inch, with protective metal grille
* Includes 1 Mains Cable EU/KC, 4 self-adhesive feet

Brand

Neumann
